‘Dragon Water’ Could Power the Planet
The quest is on to develop new technology that can tap the intense heat deep below the earth's surface and supply the whole world with electricity.
By Paul Brown / Climate News Network

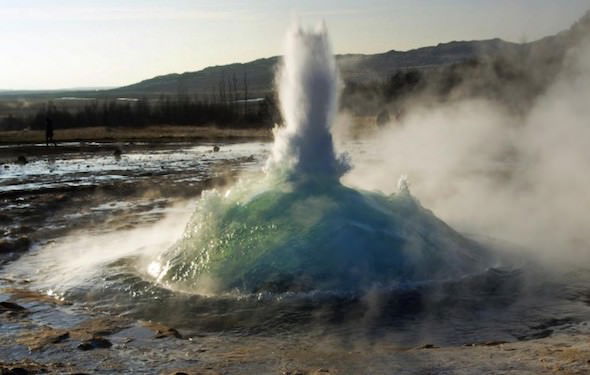

Unlimited renewable power lies below geothermal regions such as in Iceland. (Milan Nykodym via Flickr)
This Creative Commons-licensed piece first appeared at Climate News Network.
LONDON — An ambitious project is being launched to drill deep into the Earth’s crust to harness super-heated “dragon water” that would generate massive quantities of renewable energy.
Unlike traditional geo-thermal heat, which exploits hot rocks to produce steam for turbines, this project goes far deeper — to where the pressure and temperature are huge but the potential benefits are 10 times as great.
There is an infinite amount of energy beneath the Earth’s crust. The problem is the technology to harness it.
The European Union (EU) believes that deep drilling techniques developed by the oil industry can be adapted to extract the energy. It has earmarked €15.6 million for a project in which potentially the world’s most energy-rich geothermal well will be drilled at Larderello in Tuscany, Italy.
Formidable challenge
The technical challenges are formidable because of the intense heat and pressure that will turn steel brittle and wreck electrical equipment, so the plan is to develop engineering tools that can withstand the conditions.
Iceland, which already exploits traditional geo-thermal energy successfully, has tried and failed to harness super-heated rock. But it has not given up, and a second attempt is being planned.
The EU believes using oil company expertise in drilling deep wells will be the key to success.
At a depth of between two to three kilometres, the conditions change dramatically and the drillers will encounter what has been called “dragon water”. No one has previously managed to control the forces unleashed in a well under such extreme high temperature and pressure conditions.
Roar Nybø, a physicist at SINTEF Petroleum Research, explains: “One of the major uncertainties is the presence of what we call supercritical fluids.
“At depths of two to three kilometres in the Earth’s interior, ambient physical conditions change dramatically. Something very special happens when temperatures reach 374 degrees and the pressure 218 times the air pressure at the surface. We encounter what we call supercritical water.
“The dragon of the deep may help us open a real treasure trove.”
“It isn’t a liquid, and nor is it steam. It occurs in a physical form incorporating both phases, and this means that it takes on entirely new properties. Supercritical water behaves like a powerful acid, and will attack anything — including electronics and drilling equipment. In a TV fantasy series, it would probably be called ‘dragon water’.”
But the dragon water has major advantages too, Nybø says. The fluid can transport from depth up to 10 times more energy than normal water and steam can achieve in a standard geothermal well. It also flows more easily through rock fractures and pores.
If researchers can succeed in controlling the forces involved, without the technology breaking down, then a new and vast source of energy can be tapped anywhere in the world.
Potential revenues
Another potential advantage is that supercritical water can also transport valuable minerals to the surface in solution. This could provide potential incidental revenues. “The dragon of the deep may thus help us open a real treasure trove,” Nybø says.
The depths to which engineers have to drill to achieve the desired temperatures will vary from country to country, due to variations in the thickness of the Earth’s crust and the geothermal gradient.
In Norway, temperature increases by about 20 degrees per kilometre, while in other parts of the world, this may be as high as 40 degrees per kilometre. The average is about 25 degrees.
Geothermal energy is being developed across the world and has huge potential in every continent. Countries currently leading the way in the generation of electricity from geothermal sources are the US, the Philippines, Mexico, Indonesia and Italy.
Paul Brown, a founding editor of Climate News Network, is a former environment correspondent of The Guardian newspaper, and still writes columns for the paper.
